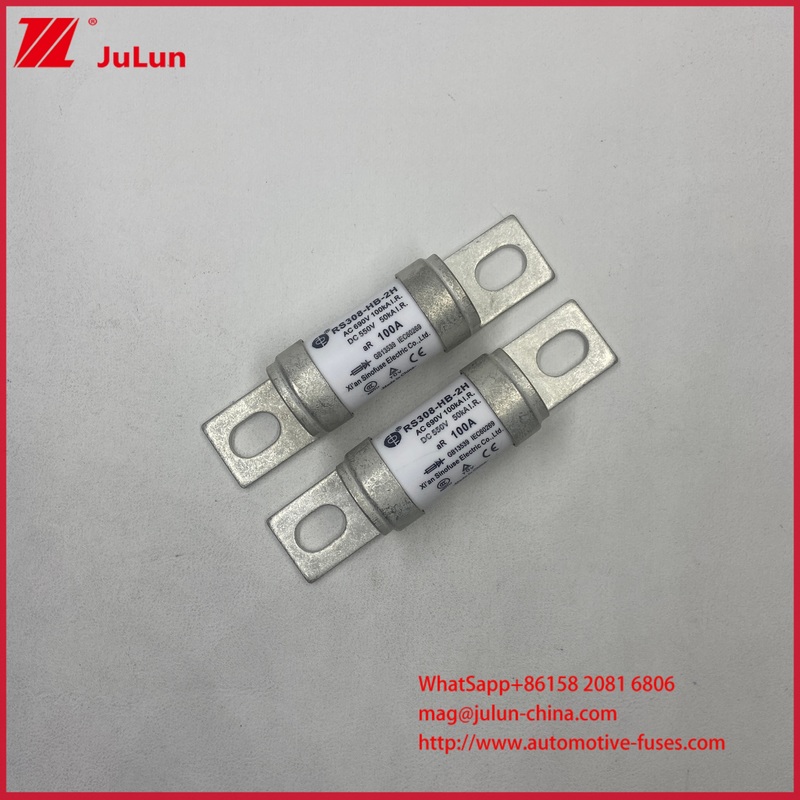

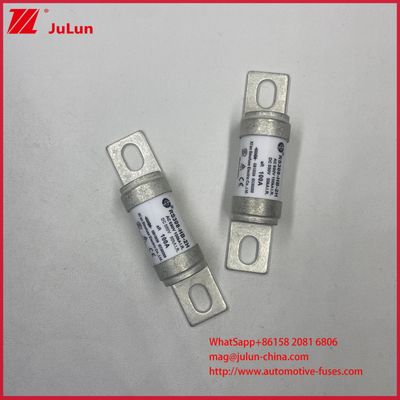

Battery Motor Ceramic Automotive Fuses M8 Short Circuit RS308-HB 125A 160A 550VDC 690VAC Protection With Small Size
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | SINO FUSE |
| Сертификация: | UL |
| Номер модели: | RS308-HB-2H 80А 200А |
Оплата и доставка Условия:
| Minimum Order Quantity: | 10 |
|---|---|
| Цена: | 2~5USD |
| Packaging Details: | Carton |
| Delivery Time: | 2~3weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/PCS |
|
Подробная информация |
|||
| Спектакль относится: | IEC60269, а экологическая надежность соответствует ISO8820, JASO D622 и GB/T31465. | Взлома: | AC100KA@COSφ0.2,DC50KA@L/R≤10 мс |
|---|---|---|---|
| Монтажный болт: | M8 | Номинальный ток: | от 10А до 710А |
| Номинальное напряжение: | 690 В переменного тока/550 В постоянного тока | Продукт применения: | Система тяги электромобилей, преобразование энергии, хранение энергии, зарядное устройство для автом |
| Особенность: | Небольшие размеры с высоким номинальным током для защиты от короткого замыкания | Метод монтажа: | Винт болт |
| Выделить: | ceramic automotive fuses M8,short circuit protection fuses 125A,small size ceramic fuses 690VAC |
||
Характер продукции
These ceramic automobile fuses are particularly suited for use in EV traction systems, where precise and dependable protection is crucial for the high power and voltage levels involved. They are also used extensively in power conversion systems within electric vehicles, ensuring that sensitive electronic components are safeguarded against electrical faults.
In addition, their role in energy storage systems, such as battery packs, is vital for protecting against overcurrent situations that could lead to damage or safety hazards. The ceramic automotive fuses also find application in car chargers, where they help protect the charging circuitry from electrical surges and faults, contributing to safe and efficient charging operations.
In summary, these ceramic automotive fuses combine advanced materials, rigorous standards compliance, and practical installation features to provide superior protection solutions for modern vehicles. Whether in electric traction systems, power conversion units, energy storage devices, or car chargers, these fuses offer dependable performance, enhancing the safety and reliability of automotive electrical systems.
- Product Name: Ceramic Automotive Fuses
- Also known as Ceramic Car Fuses and Ceramic Vehicle Fuses
- Compliance with IEC60269 performance standards
- Environmental reliability meets ISO8820, JASO D622, and GB/T31465
- Installation bolt options: M6 and M8
- High breaking capacity: AC 100KA @ COSφ 0.2, DC 50KA @ L/R ≤ 10ms
- Rated current range from 10A to 710A
- Rated voltage up to AC 690V / DC 550V
- Designed for reliable protection in automotive electrical systems
| Application product | EV Traction System, Power Conversion, Energy Storage, Car Charger And Etc. |
|---|---|
| Installation mode | Recommended Tight Torque |
| Rated voltage | AC690V/DC550V |
| Material | Ceramic, Copper, Silver, Quartz Sand, Gold |
| Feature | Small Size With High Current Rating For Short Circuit Protection |
| Performance standard | IEC60269, Environmental Reliability Complies With ISO8820, JASO D622, And GB/T31465 |
| Mounting method | SCREW BOLT |
| Installation bolt | M6, M8 |
| Breaking capacity | AC100KA@COSφ0.2, DC50KA@L/R ≤10ms |
| Usage category | AR |
SINO FUSE offers customized Ceramic Automotive Fuses, model RS308-HB-2H, designed and manufactured in China with UL certification to ensure high quality and reliability. Our minimum order quantity starts at 10 pieces, with competitive pricing ranging from 25 to 45 USD per unit. Each fuse is carefully packaged in cartons to protect the product during shipping.
With a supply ability of 1,000K pieces and a delivery time of 2 to 3 weeks, we support efficient and timely fulfillment of your orders. Payment terms are flexible with T-T accepted. The RS308-HB-2H fuse features a screw bolt mounting method, making it ideal as a bolt-connected fast fuse for various applications.
This fuse is tailored for usage in the AR category, especially suitable for electric vehicles drive the power system and chargers, providing small size with high current rating for short circuit protection. Its breaking capacity is rated at AC100KA@COSφ0.2 and DC50KA@L/R≤10ms, ensuring robust protection performance.
Performance standards comply with IEC60269, while environmental reliability meets ISO8820, JASO D622, and GB/T31465 standards, guaranteeing durability and safety in demanding automotive environments.
For technical support and services related to Ceramic Automotive Fuses, please refer to the product datasheets and installation guides available on our website. Our technical support team is dedicated to assisting with product selection, troubleshooting, and application advice to ensure optimal performance and safety.
We offer comprehensive support including fuse rating recommendations, circuit protection solutions, and guidance on proper fuse installation and replacement procedures. For warranty information and product certifications, please consult the documentation provided with your purchase.
In case of product failure or defects, please follow the return and exchange policies outlined by the distributor or retailer from whom the product was purchased. Our support team is available to address any inquiries related to product specifications, electrical ratings, and compatibility with automotive systems.
